    Schneider WATSN Series ATS Automatic Transfer Switch WATSN-100/32/2A /3A/4A/80/63/100/50/40/25

    Ask Lasest Price
    Brand Name : Schneider
    Model Number : WATSN100/32A/2A
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, T/T
    Supply Ability : 60000 Unit/Units per Month
    Delivery Time : 5- 8 work days
    • Product Details
    • Company Profile

    Schneider WATSN Series ATS Automatic Transfer Switch WATSN-100/32/2A /3A/4A/80/63/100/50/40/25

    Schneider WATSN Series ATS Automatic Transfer Switch WATSN-100/32/2A /3A/4A/80/63/100/50/40/25

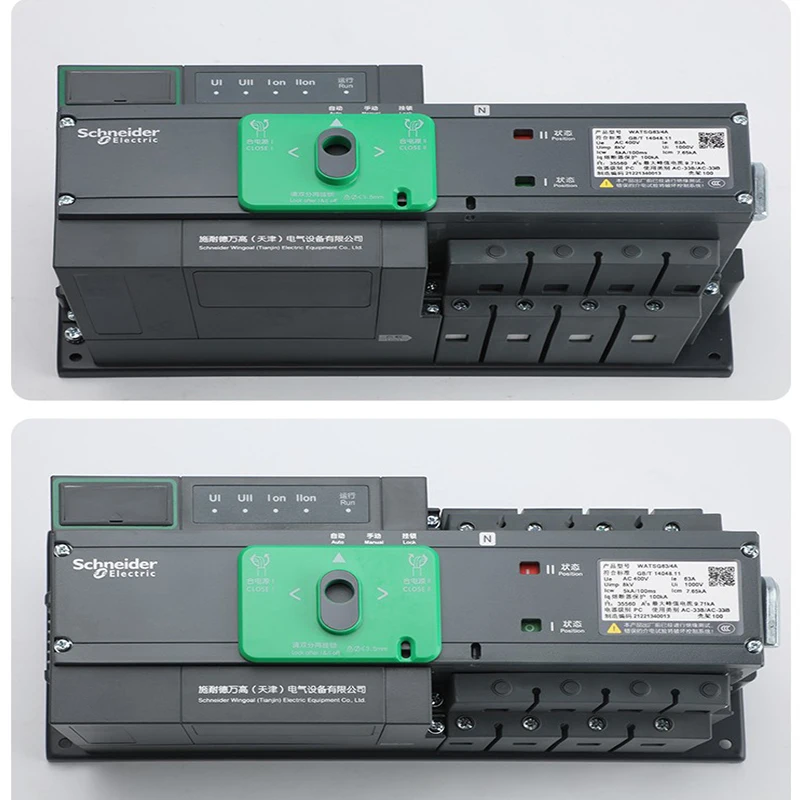

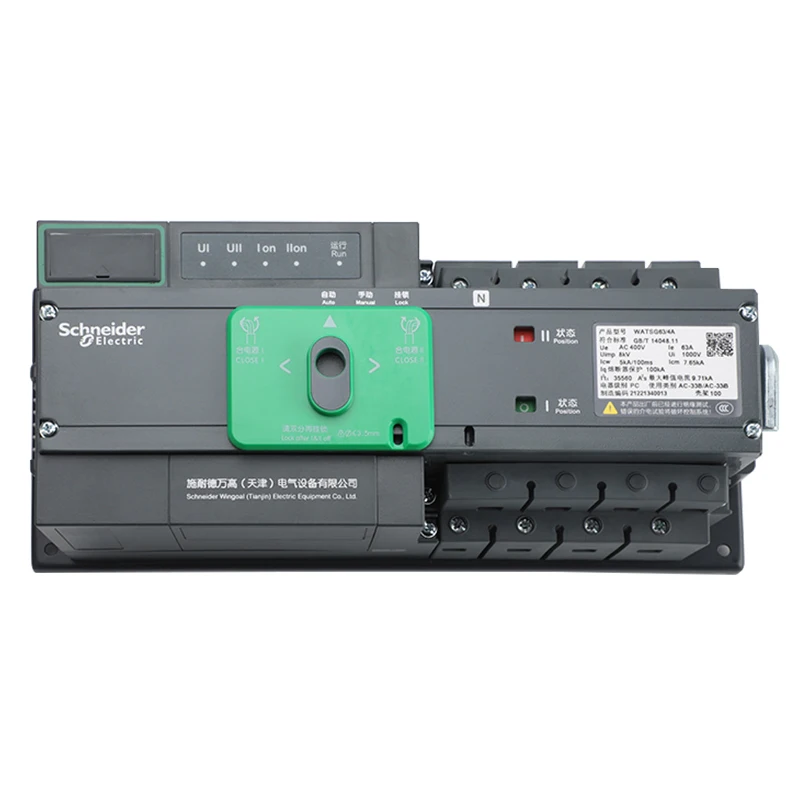

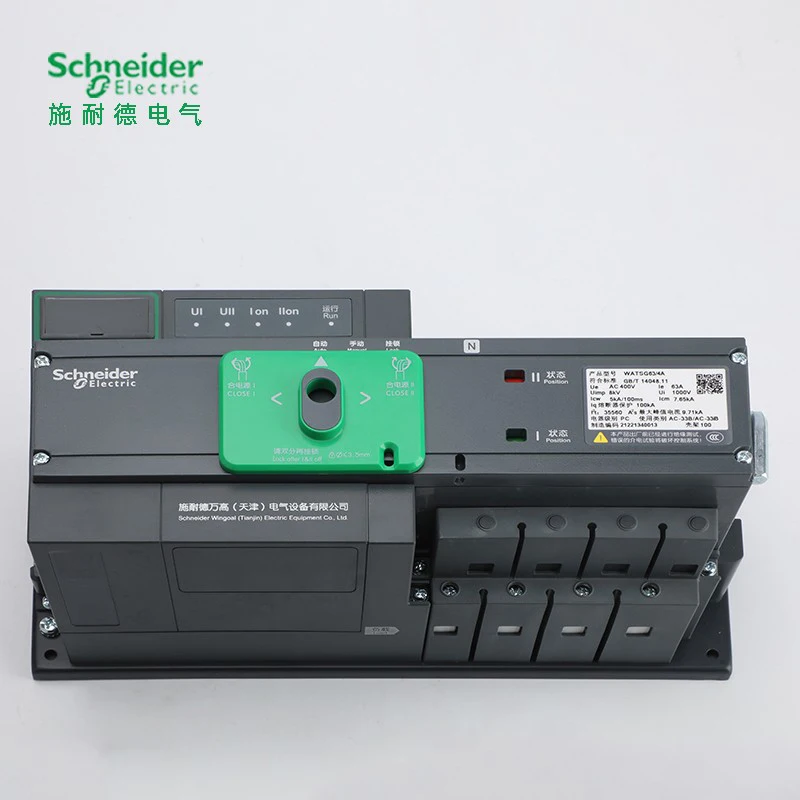

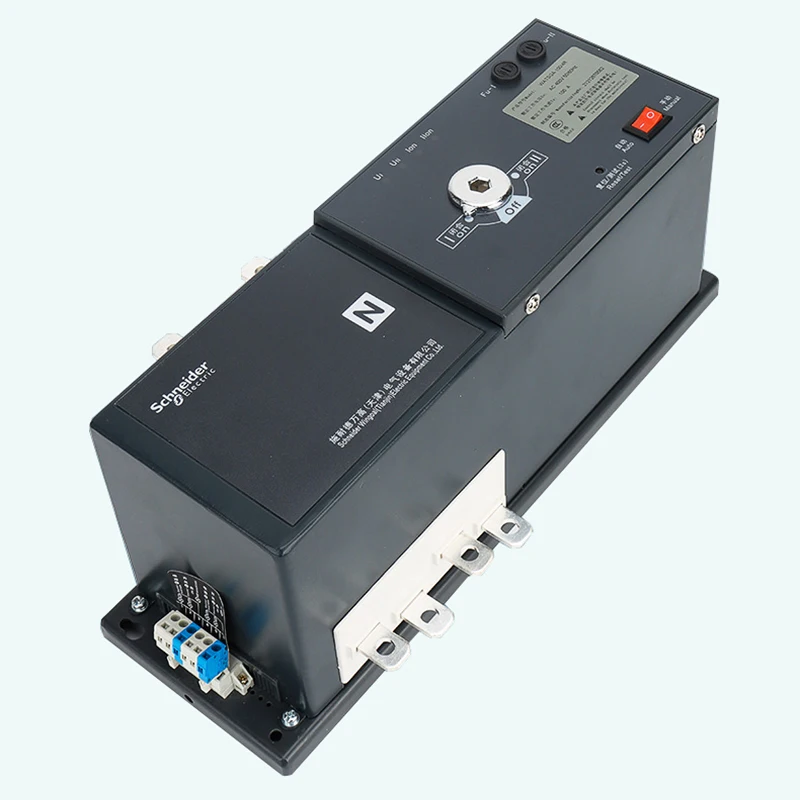

    ‌Schneider Wandao dual power ATS automatic transfer switch‌ is a device for automatic power switching, suitable for various occasions requiring uninterrupted power supply, such as fire protection, hospitals, shopping malls, military projects and high-rise buildings. Its main function is to automatically switch to the backup power supply when the main power fails to ensure continuous power supply of the load equipment.

    Main features and application scenarios

    ‌Automatic switching function‌: When the main power fails, the ATS will automatically switch to the backup power supply to ensure that the load equipment is not powered off.
    ‌Multiple working modes‌: Including automatic switching and automatic recovery, mutual backup and automatic switching without automatic recovery, etc., to meet different application requirements.
    ‌High reliability and stability‌: It adopts mechanical drive, simple structure and reliable switching, short switching time (as short as 800 milliseconds), suitable for large load conversion‌

    ‌Wide range‌: Applicable to 50Hz, rated working voltage 400V/230V dual power supply system, suitable for various main power supply places where power outages are not allowed‌

    Product Series
    WATSN
    product name
    WATSN100
    product type
    Transfer switch
    Number of poles
    2P
    Rated current[In]
    32A
    Control Type
    A
    Rated operating voltage [Ue]
    230 V AC 50/60 Hz
    Rated insulation voltage [Ui]
    690 V AC 50/60 Hz
    Rated impulse withstand voltage [Uimp]
    6 kV
    transfer switch class
    PC
    Mechanical life
    10,000 times without maintenance
    20,000 maintenance times
    certified product
    CCC CE IEC CB
    Number of Units in Package 1
    1
    Package 1 Height
    125 mm
    Package 1 Width
    240 mm
    Package 1 Length
    94.5 mm
    Package 1 Weight
    2.6 kg
